Appli Parts APAC-230240 Heavy Duty Contactor 2 Poles 30A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

Appli Parts APAC-230240 Heavy Duty Contactor 2 Poles 30A 240V Coil Replacement for AC Compressors and Electrical Applications UL Certified E476929

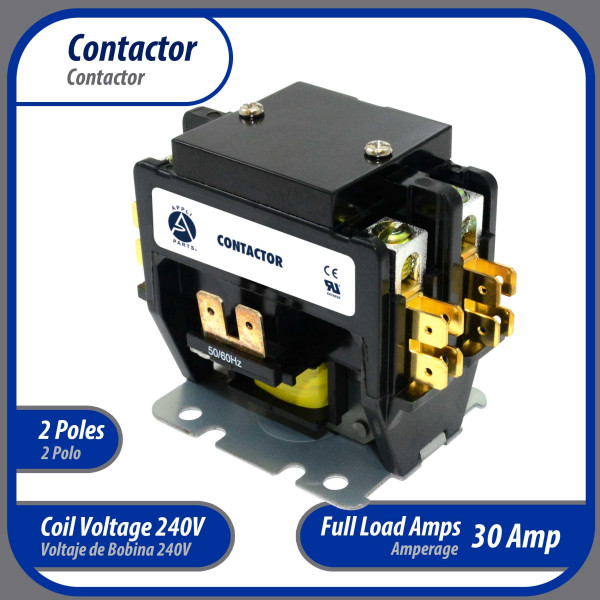

Application: Heavy-duty 2 Poles 30A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.

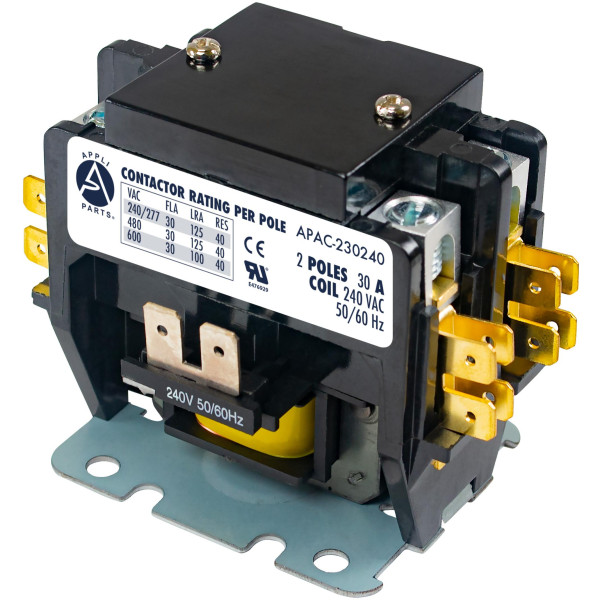

Ratings: 2 Poles 30A full load (FLA). Locked rotor (LRA): 240/277V 125A, 480V 125A, 600V 100A, UL Certified E476929 for reliable operation and long service life.
Coil Data: Resistance 1000 Ohm (DC measurement, coil 208/240V). Switching capacity: 40A (resistive load: FLA 30A, LRA: 240/277V at 125A, 480V at 125A, 600V at 100A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.
Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.
Certified Quality Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications before replacement.

Weight : 0.83 LBR
Volume : 0.01443142 FTQ
Model : APAC-230240
UPC-EAN : 814245021900

Heavy duty HVAC contactor replacement for ac compressors and other electrical applications UL 476929

This product replaces several part numbers, models and brands not limited to:

5B125, 5KAJ8, 42BF15AG, 45CG20AL, 45DG20AL, 45EG20AG, 45EG20AGL, 45EG20AL, 49C074, 8910DP22V04, 8910DP32V09, 8910DPA32V09, 17323, 17327, 61427, 61747, 91323, 51302040480, C25BNB230B, C230C, C230D, CON-2/240/30, CR453CC2BAA, DGLS2040HDE, DP2030D5002, DPE302240, EC302240, GDP3022, HCCY2XU02AA303, P282-0323, SE2736M, TMX230C2, XMC0-252LBBC

Reference G0323.03022

Condition New

Data sheet

Product Characteristic: Application: Heavy-duty 2 Poles 30A 240V coil contactor for air conditioners, heat pumps, water pumps, refrigeration systems, and electric motors. Universal replacement for HVAC and industrial applications.
Ratings: 2 Poles 30A full load (FLA). Locked rotor (LRA): 240/277V 125A, 480V 125A, 600V 100A, UL Certified E476929 for reliable operation and long service life.

Coil Data: Resistance 1000 Ohm (DC measurement, coil 208/240V). Switching capacity: 40A (resistive load: FLA 30A, LRA: 240/277V at 125A, 480V at 125A, 600V at 100A). Nominal Inrush 33VA at 50Hz / 30VA at 60Hz, Nominal Sealed 8VA at 50Hz / 6.5VA at 60 Hz.

Electrical Performance: Maximum Pick-Up 177V, Minimum Drop-Out 40/140V, Maximum Voltage 264V. Insulation Resistance: Class B, 130C, for enhanced safety and reliability.

Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Certified Quality & Replaces: High-quality materials, UL tested for durability and consistent performance. Replaces: C230C / 17323 / 17327 / 45EG20AG / 91323 / C25BNB230B / CR453CC2BAA / GDP3022 / HCCY2XU02AA303 Confirm cross-reference and specifications
Model: APAC-230240
UPC-EAN: 814245021900
Sales Unit: EA
Origin: China
US Tariff Code: 8536.49.0065
Base Unit: EA
Dimensions: 5 x 5 x 5
