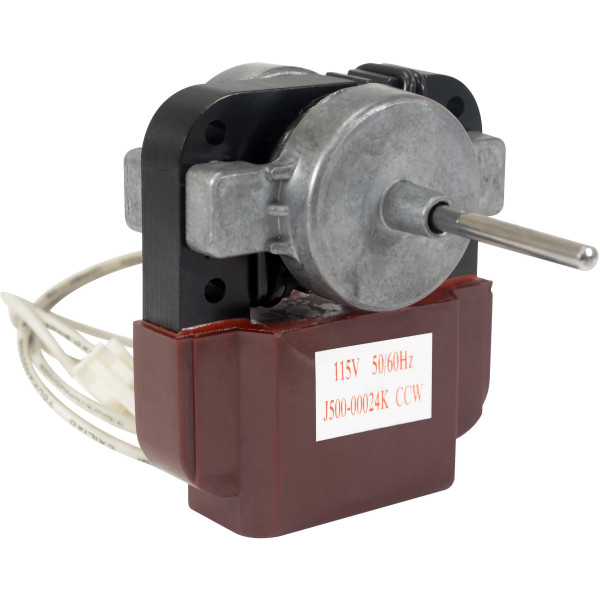

Appli Parts APFM-500 8 W Fan Motor, 110 V, 50/60 Hz, 0.16 A, 2800 rpm, CCW rotation Universal Evaportator Fan Motor replacemente for LG, Samsung, J500-00024K and others
SKU
G1410.500
Appli Parts APFM-500 8 W Fan Motor, 110 V, 50/60 Hz, 0.16 A, 2800 rpm, CCW rotation Universal Evaportator Fan Motor replacemente for LG, Samsung, J500-00024K and others
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same

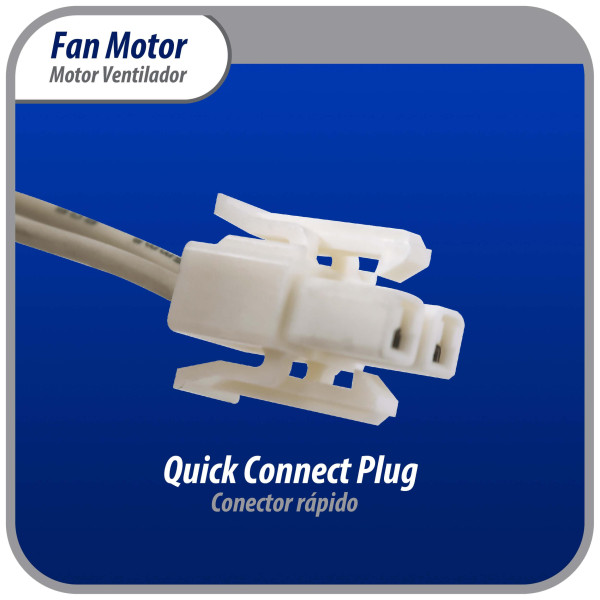

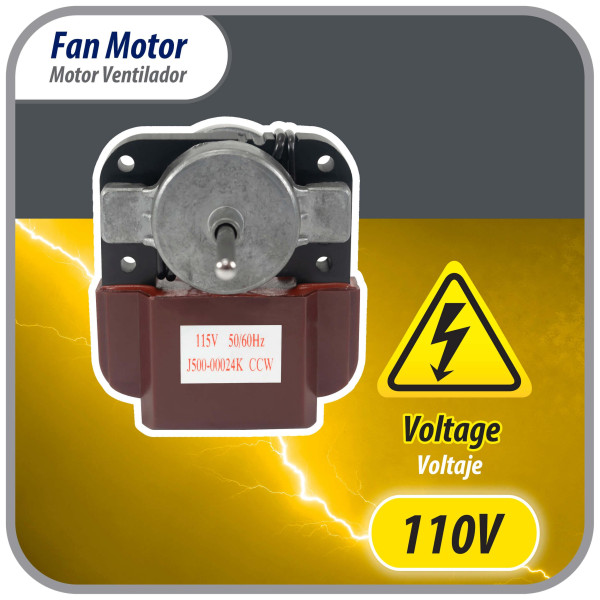

Specs: Fan motor for 110V 50-60Hz 8W 0.16A 2800rpm. Shaft is 1-1/4in Long 3/16in diam. 12in Cable with quick connect clip connection. Plastic sealed cover
Replaces: Will replace multiple brands and models specially LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs. J500-00024K

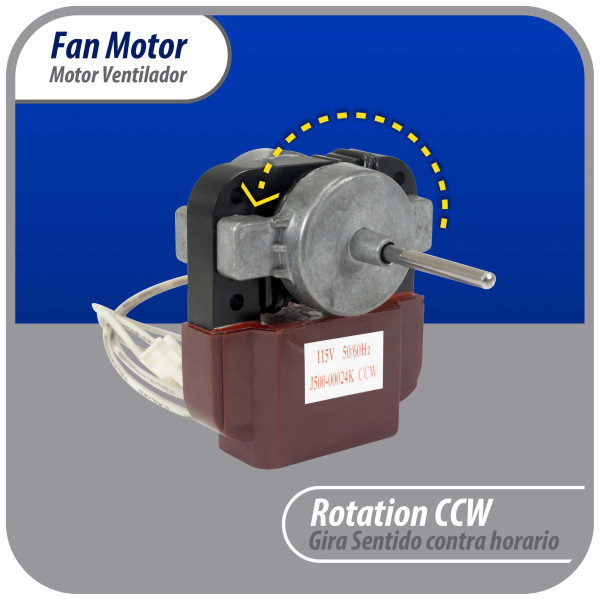

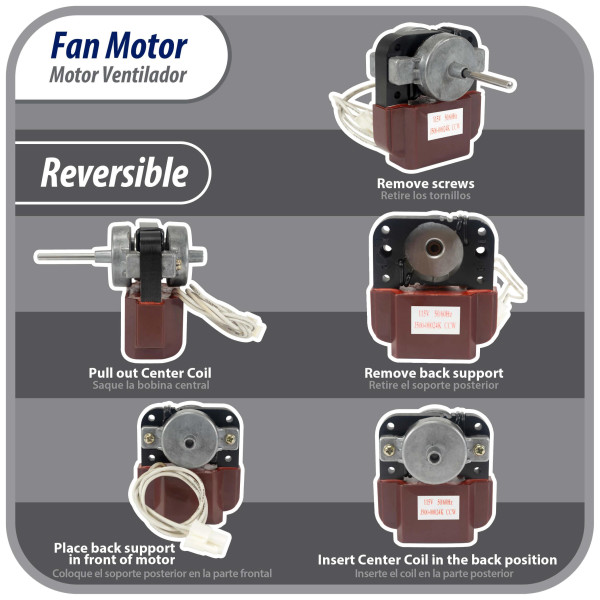

Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.96 LBR
Volume : 0.02292209 FTQ
Model : APFM-500
UPC-EAN : 814245026509
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same
Specs: Fan motor for 110V 50-60Hz 8W 0.16A 2800rpm. Shaft is 1-1/4in Long 3/16in diam. 12in Cable with quick connect clip connection. Plastic sealed cover
Replaces: Will replace multiple brands and models specially LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs. J500-00024K
Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Weight : 0.96 LBR
Volume : 0.02292209 FTQ
Model : APFM-500
UPC-EAN : 814245026509
G1410.500
New
Data sheet
- Product Characteristic
Use: Intended for refrigeration evaporator applications to circulate and distribute cold air thru the refrigerator. May be used for other applications if the specs are the same
Specs: Fan motor for 110V 50-60Hz 8W 0.16A 2800rpm. Shaft is 1-1/4in Long 3/16in diam. 12in Cable with quick connect clip connection. Plastic sealed cover
Replaces: Will replace multiple brands and models specially LG or Samsung type refrigerators. Universal fit for other brands with same capacity needs. J500-00024K
Rotation: Original assembly for Counter Clockwise rotation. However it is possible to reverse the rotation when disassembling and inverting the motor shaft
Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced- Volume
- 0.02292209 FTQ
- Model
- APFM-500
- UPC-EAN
- 814245026509
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8501.20.6000
- Base Unit
- EA

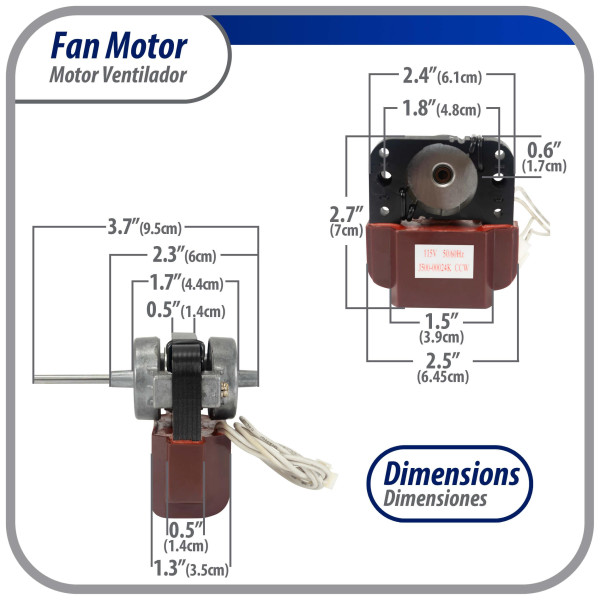

- Dimensions
- 3.25 x 3.25 x 3.75
Specific References
- UPC
- 814245026509
- MPN
- APFM-500
