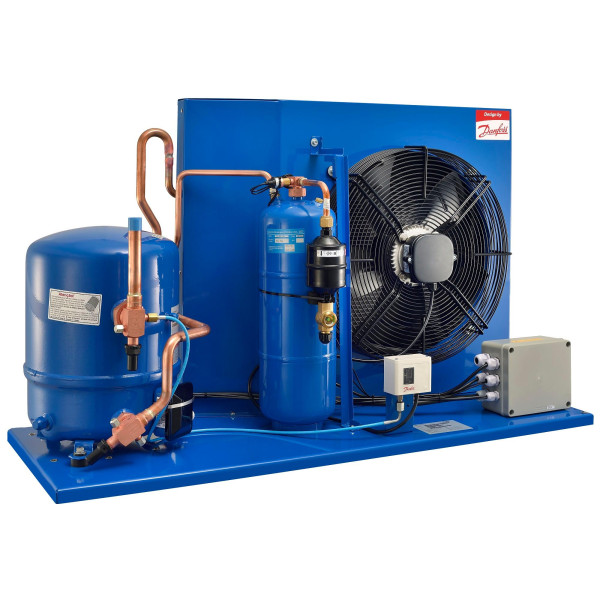

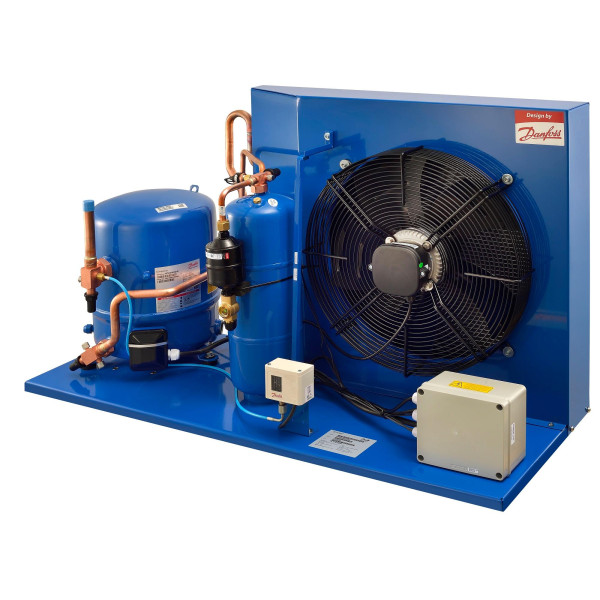

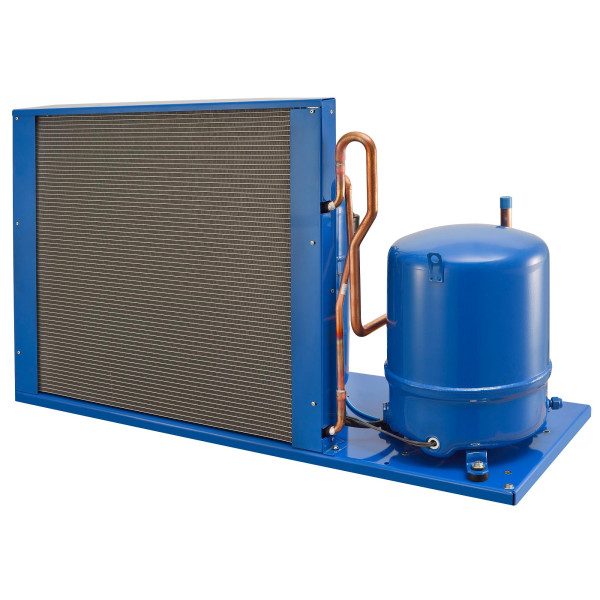

Danfoss OP-HJZ040D39Q Condensing Unit Microchannel Coil 3.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan with Reciprocating Compressor MTZ40-3 115N0290
SKU
G115F0290
Danfoss OP-HJZ040D39Q Condensing Unit Microchannel Coil 3.5HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan with Reciprocating Compressor MTZ40-3 115N0290
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 24,294 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 5/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 209.44 LBR
Volume : 11.74 FTQ
Model : HJZ040D39Q
UPC-EAN :
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 24,294 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 5/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 209.44 LBR
Volume : 11.74 FTQ
Model : HJZ040D39Q
UPC-EAN :
Danfoss OP-HJZ040D32Q Condensing Unit Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HJM040D32Q, 114N3262, HJZ040D32Q, 114N3269, 115F0290
G115F0290
New
Data sheet
- Model
- HJZ040D39Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 27.09 x 45.28 x 16.54
Specific References
- UPC
- MPN
- HJZ040D39Q
