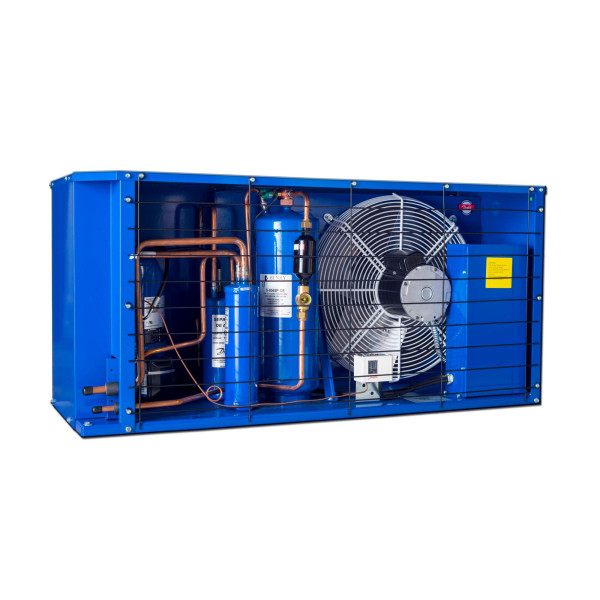

Danfoss OP-HJZ022D40Q Condensing Unit Microchannel Coil 2HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor MTZ22-3 115N0331
SKU
G115F0331
Danfoss OP-HJZ022D40Q Condensing Unit Microchannel Coil 2HP MBP 230V/3Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor MTZ22-3 115N0331
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 12,028 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in
Weight : 176.37 LBR
Volume : 5.07 FTQ
Model : HJZ022D40Q
UPC-EAN :
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 12,028 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in
Weight : 176.37 LBR
Volume : 5.07 FTQ
Model : HJZ022D40Q
UPC-EAN :
Danfoss OP-HJZ022D40Q Condensing Unit Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HCM022E40Q, HCZ022E40Q, HJM022D40Q, 114N3220, HJZ022D40Q, 114N3226, 115F0331
G115F0331
New
Data sheet
- Product Characteristic
- Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 12,028 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 1/2 Suction and 3/8 Liquid Side. 1 Axial Fan 13-3/4 in - Model
- HJZ022D40Q
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 18.23 x 39.37 x 12.2
Specific References
- UPC
- MPN
- HJZ022D40Q
