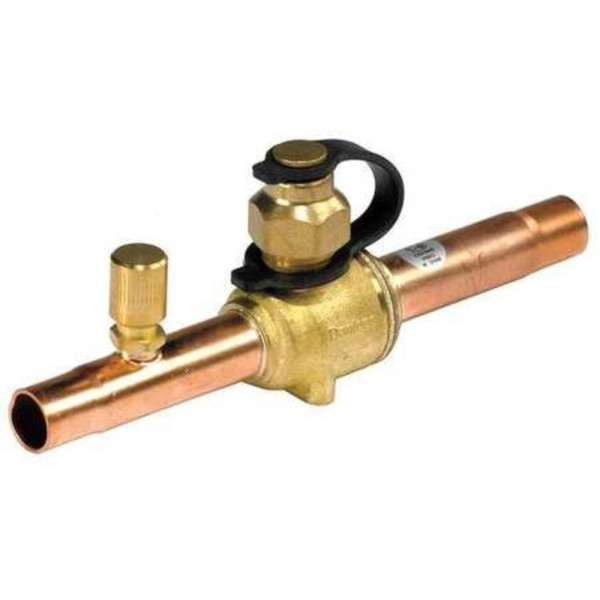

Danfoss Shut Off Ball Valve 1-3/8in ODF GBC 35s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE schrader Valve Bi-Flow 009L8067 Replaces 009G7067, 009G8067, 009G7057, 009L7057
SKU
G009G8067
Danfoss Shut Off Ball Valve 1-3/8in ODF GBC 35s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE schrader Valve Bi-Flow 009L8067 Replaces 009G7067, 009G8067, 009G7057, 009L7057
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Replaces BVE-138, 806741, BVS-138, 806761, A17866, AC17866, 6570N/11A, BV11A, SV20E035R0000, SBV(M)-JA11YHSY-1-SA, 10150054902, 937511
Weight : 3.09 LBR
Volume : 0.4375 FTQ
Model : 009L8067
UPC-EAN : 5702428866569
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Replaces BVE-138, 806741, BVS-138, 806761, A17866, AC17866, 6570N/11A, BV11A, SV20E035R0000, SBV(M)-JA11YHSY-1-SA, 10150054902, 937511
Weight : 3.09 LBR
Volume : 0.4375 FTQ
Model : 009L8067
UPC-EAN : 5702428866569
G009G8067
New
Data sheet
- Product Characteristic
- The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Replaces BVE-138, 806741, BVS-138, 806761, A17866, AC17866, 6570N/11A, BV11A, SV20E035R0000, SBV(M)-JA11YHSY-1-SA, 10150054902, 937511 - Model
- 009L8067
- UPC-EAN
- 5702428866569
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8481.80.9050
- Base Unit
- EA
- Dimensions
- 12 x 7 x 9
Specific References
- EAN13
- 5702428866569
- MPN
- 009L8067
