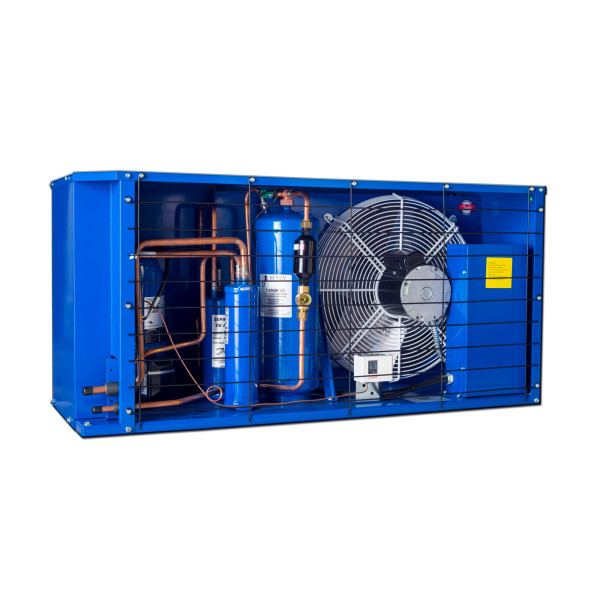

Danfoss OP-HJZ050D40N Condensing Unit Microchannel Coil 4.5HP MBP 230V/1Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor MTZ050-1 115N0348
SKU
G115F0348
Danfoss OP-HJZ050D40N Condensing Unit Microchannel Coil 4.5HP MBP 230V/1Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor MTZ050-1 115N0348
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 29,255 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 295.42 LBR
Volume : 11.74 FTQ
Model : HJZ050D40N
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 29,255 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Weight : 295.42 LBR
Volume : 11.74 FTQ
Model : HJZ050D40N
G115F0348
New
Data sheet
- Product Feature
- Rated Capacity for Medium Back Pressure R404A 29,255 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
- The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
- This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
- This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
- Weight
- 295.42 LBR
- Volume
- 11.74 FTQ
- Model
- HJZ050D40N
- UPC-EAN
- 687152010622
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 27.09 x 45.28 x 16.54
