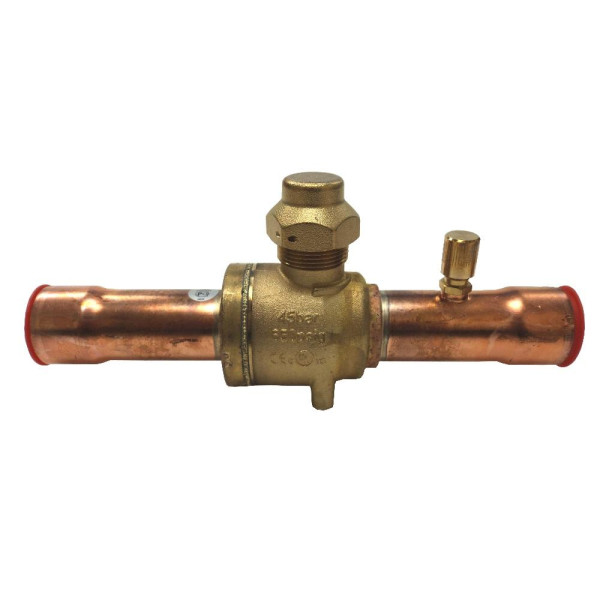

Danfoss 009L7058 1-5/8in Shut Off Ball Valve ODF GBC 42s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE Schrader Valve Bi-Flow
SKU
G2425.158
Danfoss 009L7058 1-5/8in Shut Off Ball Valve ODF GBC 42s Multiple Refrigerant MWP 650psi WT -40F to 300F with 1/4in SAE Schrader Valve Bi-Flow
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Replaces 009G7058, BVE-158, 806742, BVS-158, 806762, A17684, AC17867, SV20F158R0000, SBV(M)-JA13YHSY-2-SA, 10150055402, AC17867, 937613, 6570N/13A, BV13A
Weight : 4.92 LBR
Volume : 0.15168367 FTQ
Model : 009L7058
UPC-EAN : 5702428065863
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
Rupture proof, internally-loaded spindle design ensures safe operation under extreme pressures. Bi-directional flow, valve orientation is unimportant
Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
Replaces 009G7058, BVE-158, 806742, BVS-158, 806762, A17684, AC17867, SV20F158R0000, SBV(M)-JA13YHSY-2-SA, 10150055402, AC17867, 937613, 6570N/13A, BV13A
Weight : 4.92 LBR
Volume : 0.15168367 FTQ
Model : 009L7058
UPC-EAN : 5702428065863
G2425.158
New
Data sheet
- Product Feature
- 1/4 turn from fully open to fully closed. Rotation stops at fully open and fully closed positions
- Ball status indicator on spindle top indicating open or closed position. Double O-ring stem seal design
- Replaces 009G7058, BVE-158, 806742, BVS-158, 806762, A17684, AC17867, SV20F158R0000, SBV(M)-JA13YHSY-2-SA, 10150055402, AC17867, 937613, 6570N/13A, BV13A
- The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air conditioning systems. Typical Applications Cold rooms, Chillers, Heat pumps, Transport refrigeration
- Weight
- 4.92 LBR
- Volume
- 0.15168367 FTQ
- Model
- 009L7058
- UPC-EAN
- 5702428065863
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8481.80.9050
- Base Unit
- EA
- Dimensions
- 3.125 x 5.5 x 15.25
